1" Cup Head Weld Pins Air Ducting Insulation Fasteners for duct wrap, liner, and insulation

Πιστοποίηση
Κίνα Huihao Hardware Mesh Product Limited Πιστοποιήσεις
Κίνα Huihao Hardware Mesh Product Limited Πιστοποιήσεις
Αναθεωρήσεις πελατών
Μεγάλος! Επόμενη διαταγή θέσεων στο εγγύς μέλλον

—— Joe Paletta

Πολλές ευχαριστίες για την υπηρεσία σας και το πλέγμα σπειρών είναι τόσο όμορφες.

—— Mélissa Tovar

Έλαβε τις καρφίτσες μόνωσης, όλα φαίνονται καλά.

—— Ιβάν

Η Ζιτζίνγκ Γκάο είναι μια πολύ καλή συνεργάτης για να κάνεις δουλειές μαζί της.

—— Αμίλα

Παρήγγειλα μια ειδική κουρτίνα για το φιλανθρωπικό δείπνο μου στον Καναδά για την CANFAR.Έπρεπε να πληρώσω λίγο παραπάνω για την ταχεία αποστολή αλλά άξιζε το κόστος.Είμαι ευτυχισμένη. Σας ευχαριστώ!!!

—— Ντερέι

Η Έμιλι μου παρουσιάζει την διατρυμμένη πένα, καθαρή και χρήσιμη.

—— Karl

Είμαι Online Chat Now

1" Cup Head Weld Pins Air Ducting Insulation Fasteners for duct wrap, liner, and insulation

1" Cup Head Weld Pins Air Ducting Insulation Fasteners for duct wrap, liner, and insulation
1" Cup Head Weld Pins Air Ducting Insulation Fasteners for duct wrap, liner, and insulation 1" Cup Head Weld Pins Air Ducting Insulation Fasteners for duct wrap, liner, and insulation 1" Cup Head Weld Pins Air Ducting Insulation Fasteners for duct wrap, liner, and insulation 1" Cup Head Weld Pins Air Ducting Insulation Fasteners for duct wrap, liner, and insulation 1" Cup Head Weld Pins Air Ducting Insulation Fasteners for duct wrap, liner, and insulation

Μεγάλες Εικόνας :  1" Cup Head Weld Pins Air Ducting Insulation Fasteners for duct wrap, liner, and insulation

Λεπτομέρειες:
Place of Origin: China
Μάρκα: huihao
Πιστοποίηση: ISO
Model Number: Air Ducting Insulation Fasteners
Πληρωμής & Αποστολής Όροι:
Minimum Order Quantity: Negotiable
Packaging Details: 1. 1000 pcs / 2000 pcs/ 3000 pcs per carton 2. 48 cartons per pallet 3. or according to your requirement.
Delivery Time: 5-8 work days
Payment Terms: L/C,T/T,Western Union,paypal
Supply Ability: 1,000,000 pcs per 30 days

1" Cup Head Weld Pins Air Ducting Insulation Fasteners for duct wrap, liner, and insulation

περιγραφή
Product name: Cup Head Weld Pins Brand: HUIHAO CUSTOM
Material: Carbon Steel Base Size: 25mm or 30mm is standard
Surface: Copper plated, galvanized Nail Diameter: 1.8mm, 2.0mm, 2.7mm, 3.0mm, 3.4mm
Samples: Support Nail Length: As your requirement
Επισημαίνω:

1 inch weld pins for duct insulation

,

air ducting insulation fasteners

,

stud welding pins for duct wrap

1" Cup Head Weld Pins Air Ducting Insulation Fasteners
Product Specifications
Attribute Value
Product name Cup Head Weld Pins
Brand HUIHAO CUSTOM
Material Carbon Steel
Base Size 25mm or 30mm is standard
Surface Copper plated, galvanized
Nail Diameter 1.8mm, 2.0mm, 2.7mm, 3.0mm, 3.4mm
Samples Support
Nail Length As your requirement
Key Features
  • Material: Carbon Steel with copper coating or zinc coating for anti-corrosion
  • Beveled Head: Designed to prevent cutting of insulation material
  • Head Size: 1-3/16" (30mm) with 0.5mm thickness is standard
  • Nail Diameter Options: 10Gauge/3.4mm, 11Gauge/3.0mm, 12Gauge/2.7mm
  • Custom Lengths: Available from 25-300mm
  • Strong riveting on base for secure attachment
  • Excellent welding performance
  • Free samples available
  • Fully customizable sizes
Product Images

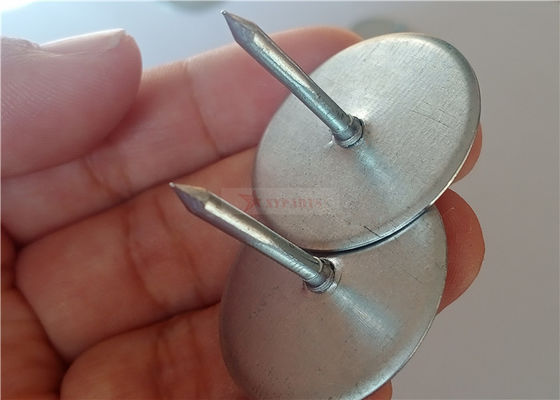

1" Cup Head Weld Pins Air Ducting Insulation Fasteners for duct wrap, liner, and insulation 0
Item: Cup Head Weld Pins
Material: Galvanized Steel
Base Size: 30mm
Nail Diameter: 2.7mm
Nail Length: 25mm
Custom sizes and materials available

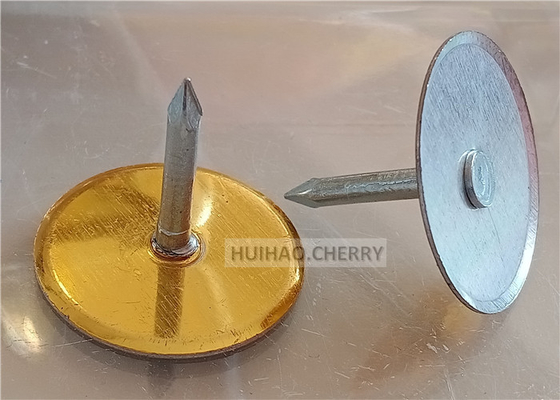

1" Cup Head Weld Pins Air Ducting Insulation Fasteners for duct wrap, liner, and insulation 1
Item: Cup Head Weld Pins
Material: Galvanized Steel
Base Size: 30mm
Nail Diameter: 3.4mm
Nail Length: 105mm
Custom sizes and materials available

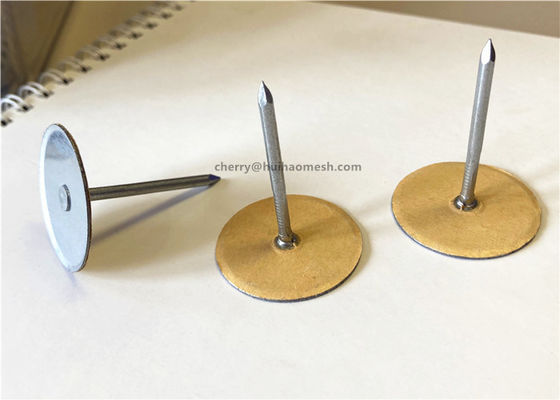

1" Cup Head Weld Pins Air Ducting Insulation Fasteners for duct wrap, liner, and insulation 2
Item: Cup Head Weld Pins
Base Material: Galvanized Steel
Base Size: 30mm
Nail Material: Copper Coated Mild Steel
Nail Diameter: 2.7mm
Nail Length: 125mm
Custom sizes and materials available
Applications

Cup head weld pins are typically applied using a capacitor discharge stud welder. The installation process involves placing insulation onto a metal surface, pushing the weld pins through the insulation, and welding the entire fabrication in one efficient step.

These labor-saving fasteners are widely used in commercial and industrial applications for thermal and acoustical insulation systems.

1" Cup Head Weld Pins Air Ducting Insulation Fasteners for duct wrap, liner, and insulation 3
1" Cup Head Weld Pins Air Ducting Insulation Fasteners for duct wrap, liner, and insulation 4
Packaging Options
  • 1000 pcs / 2000 pcs / 3000 pcs per carton
  • 48 cartons per pallet
  • Custom packaging available upon request
1" Cup Head Weld Pins Air Ducting Insulation Fasteners for duct wrap, liner, and insulation 5
Frequently Asked Questions

1. Are you a manufacturer or a trader?
We are a manufacturer located in Hebei province, China.

2. Do you support product customization?
Yes, we can customize material, surface finish, wire diameter, and length according to your requirements.

3. Can I get samples?
Yes, we provide samples for quality confirmation.

4. Can you accept small orders?
Yes, we accept small orders for common sizes.

5. How do you ensure product quality?

  • Confirm all details before quoting
  • Reconfirm specifications before production
  • Implement IATF 16949 Quality Management System standards
  • Provide production and shipment updates with videos and photos
For inquiries about cup head weld pins, manufacturing equipment, or welding tools, please contact:
Email: cherry@huihaomesh.com
WhatsApp: +86 18031853647
