Self-Adhesive Base Insulation Stick Up Pins 2-1/2" for fixing insulation to HVAC, ceiling and ducting purpose

Self-Adhesive Base Insulation Stick Up Pins 2-1/2" for fixing insulation to HVAC, ceiling and ducting purpose
Self-Adhesive Base Insulation Stick Up Pins 2-1/2" for fixing insulation to HVAC, ceiling and ducting purpose Self-Adhesive Base Insulation Stick Up Pins 2-1/2" for fixing insulation to HVAC, ceiling and ducting purpose

Μεγάλες Εικόνας :  Self-Adhesive Base Insulation Stick Up Pins 2-1/2" for fixing insulation to HVAC, ceiling and ducting purpose

Λεπτομέρειες:
Τόπος καταγωγής: Κίνα
Μάρκα: HUIHAO
Πιστοποίηση: ISO9001:2008
Αριθμό μοντέλου: Μονωτικά Stick Up Pins
Πληρωμής & Αποστολής Όροι:
Ποσότητα παραγγελίας min: Διαπραγματεύσιμος
Συσκευασία λεπτομέρειες: 500 τεμ ανά χαρτοκιβώτιο, 48 χαρτοκιβώτια σε μία παλέτα
Χρόνος παράδοσης: 12 ημέρες μετά την πρώτη πληρωμή
Όροι πληρωμής: L/C, T/T, Western Union, MoneyGram
Δυνατότητα προσφοράς: 100,000 PCS την εβδομάδα

Self-Adhesive Base Insulation Stick Up Pins 2-1/2" for fixing insulation to HVAC, ceiling and ducting purpose

περιγραφή
Όνομα προϊόντος: Μονωτικά Stick Up Pins Υλικό: γαλβανισμένος χάλυβας, ανοξείδωτος χάλυβας, αλουμίνιο
Καρφώστε διά: 2.7mm ως πρότυπα Μήκος καρφίτσας: 19mm - 400mm, θα μπορούσε να προσαρμοστεί
Μέγεθος βάσης: 50mmx50mm στάνταρ Αξεσουάρ: Διατίθενται διάφορα αυτοασφαλιζόμενα πλυντήρια
Προσαρμογή: Διαθέσιμος Δείγματα: Διαθέσιμος
Επισημαίνω:

Self-adhesive insulation pins for HVAC

,

2-1/2 inch insulation stick up pins

,

Ducting insulation adhesive pins

Self-Adhesive Base Insulation Stick Up Pins 2-1/2" For Fixing Insulation To HVAC, Ceiling And Ducting Purpose



Product Description Of Insulation Stick Up Pins:

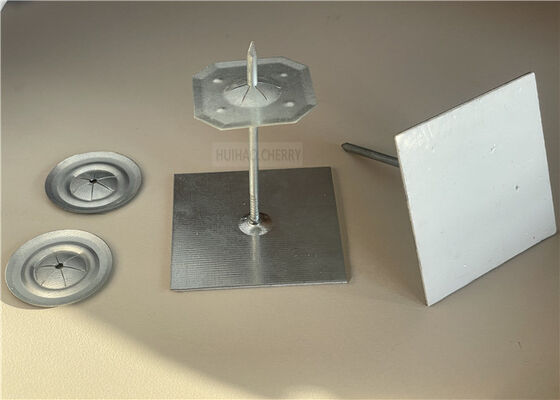

Insulation stick up pins are designed for fitting insulation materials to smooth surfaces, such as air ducts, attenuators, chambers, and enclosures, without using any additional tools. It’s great for quick and easy application of insulation to HVAC, ceiling and ducting purpose.



Insulation stick up pins can be used or fitting rigid or flexible insulation materials such as glass fibre, rock wool, PU foam, PIR, phenolic foam, and cork, etc.



Insulation stick up pins made from Huihao are with good quality and price, the nail is firmly riveted on the 50x50mm steel plate, the steel plate is high hardness, the nail is easy to be bent, the foam adhesive backed on the steel plate is very sticky, the self locking washrs could firmly and quickly fasten the nails of the insulation stick up pins, and the raw material is high anti-corrosion stainless steel or galvanized steel material.



 HUIHAO Insulation Stick Up Pins



Pin diameter  Base size  Pin length  Clips Size
12 Ga (2.7mm or 0.106'') 50mmx50mm 1'' 30mm, 32mm, 38mm, 50mm, 65mm etc.
12 Ga (2.7mm or 0.106'') 50mmx50mm 2'' 30mm, 32mm, 38mm, 50mm, 65mm etc.
12 Ga (2.7mm or 0.106'') 50mmx50mm 2 1 / 2'' 30mm, 32mm, 38mm, 50mm, 65mm etc.
12 Ga (2.7mm or 0.106'') 50mmx50mm 3 1 / 2'' 30mm, 32mm, 38mm, 50mm, 65mm etc.
12 Ga (2.7mm or 0.106'') 50mmx50mm 4'' 30mm, 32mm, 38mm, 50mm, 65mm etc.

12 Ga (2.7mm or 0.106'')

50mmx50mm 5 1 / 2'' 30mm, 32mm, 38mm, 50mm, 65mm etc.
12 Ga (2.7mm or 0.106'') 50mmx50mm 8'' 30mm, 32mm, 38mm, 50mm, 65mm etc.



For Insulation Stick Pins And Washers, the base size, the pin dia, the pin length, the self locking washer size, all is customizable.





Self-Adhesive Base Insulation Stick Up Pins 2-1/2" for fixing insulation to HVAC, ceiling and ducting purpose 0

Self-Adhesive Base Insulation Stick Up Pins 2-1/2" for fixing insulation to HVAC, ceiling and ducting purpose 1



Features Of Insulation Stick Up Pins:



  • Bases are tight with pins
  • Pins are soft, easy to be bent over
  • Double faced adhesive
  • Length Tolerance
  • High strength
  • Long Lasting
  • Anti-corrosion



Application Of Insulation Stick Up Pins For Fixing Insulation To HVAC, Ceiling And Ducting Purpose:



* Wipe Surface Clean: Insulation stick pins should be applied to a clean, dry non-porous surface

* Simply peel off the backing tape.
* Stick the pin to the surface where the insulation will be placed.
* Put the insulation in place, and push the insulation onto the pin.
* Push the self locking washer over the pin.
* Important note: add the cap or bend the pin over on itself to avoid it impaling someone.
* Your insulation is now hanging without the fear of falling.

Self-Adhesive Base Insulation Stick Up Pins 2-1/2" for fixing insulation to HVAC, ceiling and ducting purpose 2

Self-Adhesive Base Insulation Stick Up Pins 2-1/2" for fixing insulation to HVAC, ceiling and ducting purpose 3





Packaging Of Insulation Stick Up Pins For Fixing Insulation To HVAC, Ceiling And Ducting Purpose:

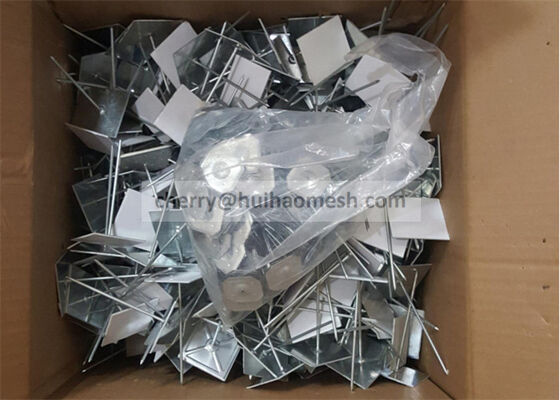

The default packaging way is bulk packing or small boxes packing in cartons then on pallets.

We can assist you in determining the most effective packaging style, material, and size for your unique products or as your requirement.



Self-Adhesive Base Insulation Stick Up Pins 2-1/2" for fixing insulation to HVAC, ceiling and ducting purpose 4Self-Adhesive Base Insulation Stick Up Pins 2-1/2" for fixing insulation to HVAC, ceiling and ducting purpose 5



HUIHAO HARDWARE MESH PRODUCT LIMITED



Huihao Hardware Mesh Product Limited is a professional manufacture for insulation pins and washers, our main products include: perforated insulation pins & self adhesive insulation pins for wall and ceiling insulation, lacing anchors & quilting pins & lacing whashers for the fabrication of removable insulation blanket, cd weld pins for marine insulaiton, cup head weld pins for ducting insulation, and kinds of metal fixing washers for the fixing of tile backer board, roofing insulaitn, wire lath, and plaster etc.



Our insulation pins and washers are with good quality and price, we choose high standard raw material, have fully automatic production line, and strict quality control system, and for the insulation pins and washers, the material, the size, the package all is customizable according to your special need.



Self-Adhesive Base Insulation Stick Up Pins 2-1/2" for fixing insulation to HVAC, ceiling and ducting purpose 6Self-Adhesive Base Insulation Stick Up Pins 2-1/2" for fixing insulation to HVAC, ceiling and ducting purpose 7

Self-Adhesive Base Insulation Stick Up Pins 2-1/2" for fixing insulation to HVAC, ceiling and ducting purpose 8



Frequently Asked Questions


1. Are you a manufacturer or a trader?
We are a manufacturer located in Hebei province, China.

2. Do you support product customization?
Yes, we can customize material, surface finish, wire diameter, and length according to your requirements.

3. Can I get samples?
Yes, we provide samples for quality confirmation.

4. Can you accept small orders?
Yes, we accept small orders for common sizes.

5. How do you ensure product quality?

  • Confirm all details before quoting
  • Reconfirm specifications before production
  • Implement IATF 16949 Quality Management System standards
  • Provide production and shipment updates with videos and photos
